[0002] 3D printing, also known as a type of rapid prototyping technology, is a technique that constructs objects by layer-by-layer printing using adhesive materials like powdered metal or plastic, based on digital model files. 3D printing is usually achieved with digital material printers, often used in mold manufacturing, industrial design, and
other fields to make models. Gradually, it has been used for
the direct manufacturing of some products, with parts made
using this technology. This technology has been applied in
jewelry, footwear, industrial design, architecture, engineering, and construction, automotive, aerospace, dental and medical industries, education, geographic information systems, civil engineering, firearms, and other fields. Nowadays, as 3D printing technology matures, the types and functions of 3D printers are becoming increasingly diversified.
[0003] However, commonly used 3D printers can only control the printer device to move and adjust in a certain
direction, resulting in less precise adjustment of the printing position. The adjustment range is limited and can’t control the printing operation smoothly, thus reducing the printing effect and quality. To solve these problems, we propose a ground rail type printer.
(1) Technical Problem to be Solved
[0004] Addressing the shortcoming of the prior art, the present invention provides a ground rail type printer, which
solves the problem that when the 3D printer is used, only the printer device can be controlled to move and adjust in specific directional positions, resulting in the printing position adjustment of the printer device is not accurate enough, the adjustment range is limited, and the printing operation cannot be controlled smoothly. Such constraints inevitably lead to a decrease in both the efficiency and quality of the
printing outcome.
[0005] To achieve the above purpose, this application provides the following technical solution. A ground rail type printer, comprising two X-axis guide rail assemblies, two
Z-axis guide rail assemblies, and a Y-axis guide rail assembly assembly. The two X-axis guide rail assemblies are both equipped with a slidingly mounted connecting plate. The
bottom ends of the two Z-axis guide rail assemblies are
respectively fixedly mounted on the tops of the corresponding connecting plates by screws. A first rack is fixedly
mounted on the sides of the two X-axis guide rail assemblies
that are closest to each other. Both connecting plates are
equipped with X-axis drive assemblies. Sliding supports are slidingly mounted on the two Z-axis guide rail assemblies. The two ends of the Y-axis guide rail assembly are respectively fixedly connected to the corresponding sliding supports. A printer frame is slidingly mounted on the Y-axis
guide rail assembly. The printer frame is equipped with a Y-axis drive assembly. Fixed supports are fixedly mounted
on the tops of the two Z-axis guide rail assemblies. Both
Z-axis guide rail assemblies are equipped with Z-axis drive
assemblies.
[0006] Preferably, the X-axis drive assembly comprises a first servo motor, a drive shaft, and a first drive gear. The first servo motor is fixedly mounted on the top of the connecting plate. The drive shaft is rotationally mounted on the connecting plate.The top end of the drive shaft penetrates the connecting plate and is fixedly connected to the output shaft end of the first servo motor. The first drive gear is fixedly mounted at the bottom end of the drive shaft. The first drive gear meshes with the first rack.
[0008] Preferably, the bottoms of the two X-axis guide rail assemblies are each installed with multiple channel steel brackets by screws. The multiple channel steel brackets at the bottom of the same X-axis guide rail assembly are arranged at equal intervals.
[0009] Preferably, the Y-axis drive assembly comprises a second servo motor, a second drive gear, and a second rack. The second servo motor is fixedly mounted on the left side of the printer frame. The second drive gear is fixedly
mounted on the output shaft end of the second servo motor. The second rack is fixedly mounted on the side of the printer frame near the second servo motor. The second drive gear meshes with the second rack.
[0010] Preferably, the printer frame comprises two fixed plates, four screws, four positioning rings, and two guide wheels. The two fixed plates are respectively located on both
sides of the Y-axis guide rail assembly. The two ends of the
screws are respectively installed on the corresponding fixed plates by nuts. The four positioning rings are respectively set on the corresponding screws. The two guide wheels are rotatably installed on the sides of the two fixed plates that are
farthest from each other. The two guide wheels are respectively in rolling contact with the two sides of the Y-axis guide rail assembly.
[0011] Preferably, the Z-axis drive assembly comprises a
third servo motor, a ball screw, a ball nut, and a coupling. Both the third servo motor and the coupling are fixedly installed on the top of the fixed support. The ball screw is rotatably installed on the Z-axis guide rail assembly. The output shaft end of the third servo motor and the top end of the ball screw are respectively connected to the coupling. The sliding support is threadedly connected to the ball screw. The ball nut is installed on the sliding support and is set on the ball screw.
[0012] The present application provides a ground rail type printer with the following beneficial effects:
[0014] (2) This ground rail type printer, by controlling the
printer device installed on the printer frame to adjust in the
direction of the X-axis guide rail assemblies, Z-axis guide
rail assemblies, and Y-axis guide rail assemblies respectively, can precisely adjust the printing position of the printer device. The adjustment range has been increased, allowing for more convenient printing operations, and improving the printing effect and printing quality.
BRIEF DESCRIPTION OF DRAWINGS

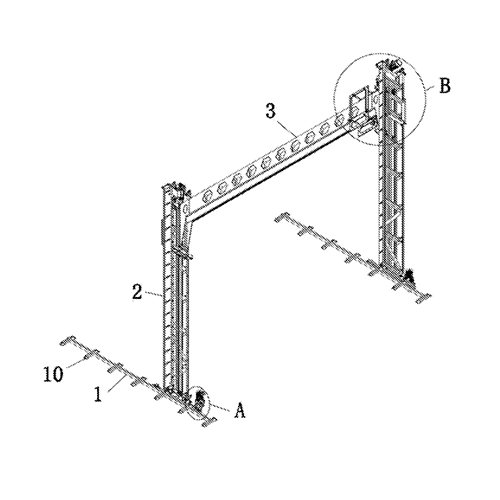

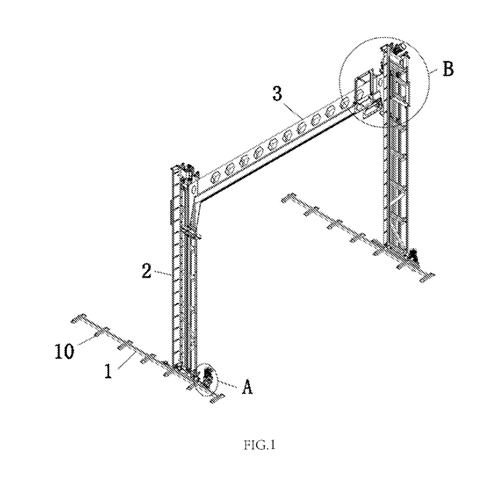

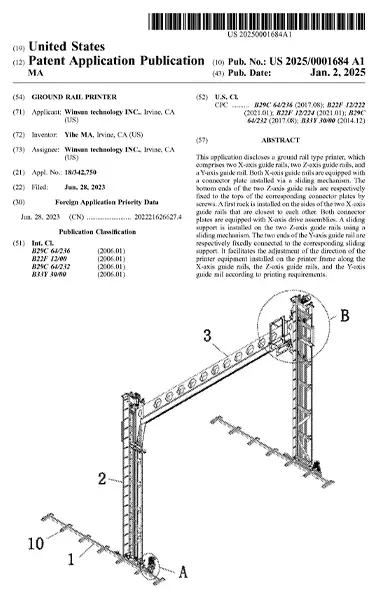

[0015] FIG. 11s a schematic view of the three-dimensional structure of this application;

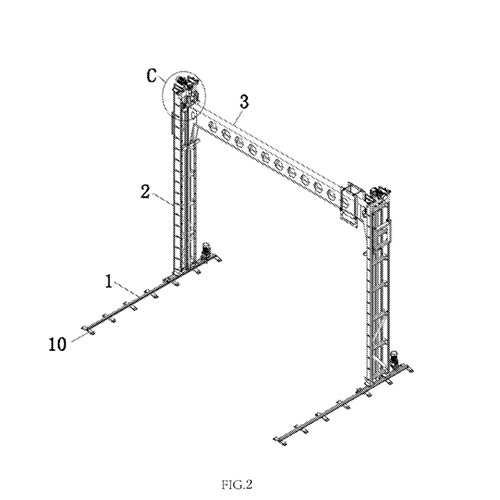

[0016] FIG. 21s a schematic view of the three-dimensional structure of this application from another perspective;

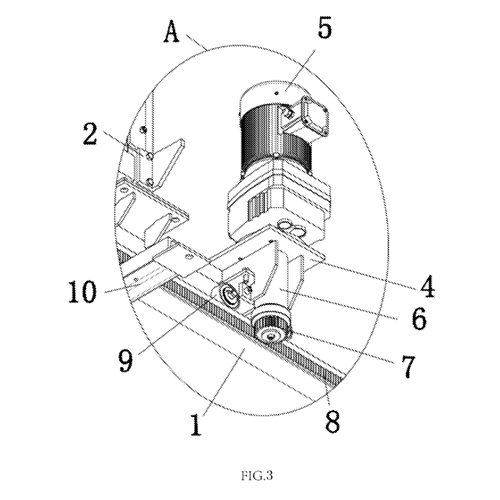

[0017] FIG. 3 is an enlarged schematic view of part A in FIG. 1;

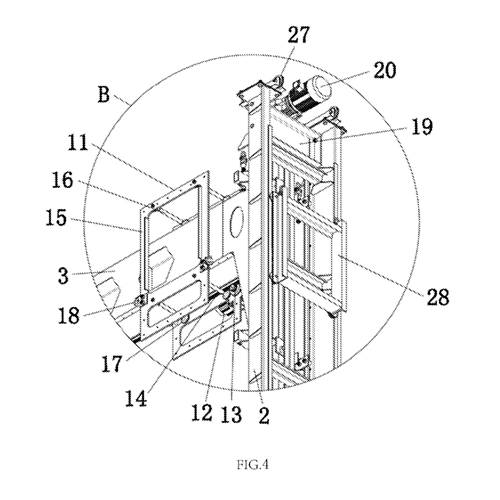

[0018] FIG. 4 is an enlarged schematic view of part B in FIG. 1;

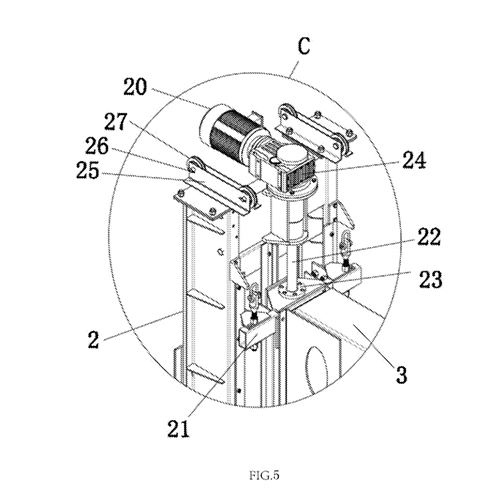

[0019] FIG. 5 is an enlarged schematic view of part C in FIG. 2.
[0021] The following will clearly and completely describe the technical solutions in the embodiments of this application in conjunction with the accompanying drawings. Obviously, the described embodiments are only a part of the embodiments of this application, not all of the embodiments. All other embodiments obtained by those skilled in the art without creative work based on the embodiments in this
application belong to the scope of protection of this application.
[0022] In the description of this application, it needs to be
understood that terms such as “length”, “width”, “up”.
“down”, “front”, “back”, “left”, “right”, “vertical”, “horizontal”, “top”, “bottom”, “inside”, “outside” etc. indicate the position or spatial relationships based on those shown in the figures. They are only for the convenience of describing
this application and simplifying the description, and do not indicate or imply that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation. Therefore, they should not be understood as limiting this application. Furthermore, in the
description of this application, “multiple” means two or
more, unless there is a specific limitation.
[0023] As shown in FIGS. 1-5, this application provides a technical solution: a ground rail type printer, comprising two X-axis guide rail assemblies 1, two Z-axis guide rail assemblies 2 and Y-axis guide rail assembly 3. Two connection plates 4 are slidably mounted on the two X-axis guide rail assemblies 1, and the bottom ends of the two Z-axis guide rail assemblies 2 are fixedly mounted on the top of the corresponding connection plates 4 by screws. A first rack 8 is fixedly mounted on the side of the two X-axis guide rail assemblies 1 that are close to each other. X-axis drive assembly are provided on the two connection plates 4. By
using the X-axis drive assembly, the two Z-axis guide rail
assemblies 2 can be controlled to slide on the corresponding
X-axis guide rail assemblies 1, thereby enabling the two
Z-axis guide rail assemblies 2 and Y-axis guide rail assembly
3 to move horizontally in the direction of the X-axis guide
rail assemblies 1. Sliding brackets 21 are slidably mounted on the two Z-axis guide rail assemblies 2. The two ends of
the Y-axis guide rail assembly 3 are fixedly connected with
the corresponding sliding brackets 21. The printer frame 11 is slidably mounted on the Y-axis guide rail assembly 3. By using the printer frame 11, it is convenient to mount and fix the printer device on the printer frame 11. The printer frame 11 is provided with a Y-axis drive assembly. By using the Y-axis drive assembly, the printer frame 11 can be controlled to move horizontally on the Y-axis guide rail assembly 3, thereby controlling the horizontal movement of the printer device mounted on the printer frame 11. Fixed brackets 19 are fixedly mounted on the top of the two Z-axis guide rail assemblies 2. Z-axis drive assembly are provided on the two Z-axis guide rail assemblies 2. By using the Z-axis drive assembly, the Y-axis guide rail assembly 3 and the printer frame 11 can be controlled to rise or fall vertically.
[0024] In this embodiment, the X-axis drive assembly comprises a first servo motor 5, a drive shaft 6, and a first drive gear 7. The first servo motor 5 is fixedly mounted on the top of the connection plate 4. The drive shaft 6 is rotatably mounted on the connection plate 4. The top end of the drive shaft 6 penetrates the connection plate 4 and is fixedly connected with the output shaft end of the first servo motor 5. The first drive gear 7 is fixedly mounted on the
bottom end of the drive shaft 6. The first drive gear 7 meshes with the first rack 8. By using the meshing transmission of the first drive gear 7 and the first rack 8, the connection plate
4 can be controlled to drive the Z-axis guide rail assembly
2 to move horizontally in the direction of the X-axis guide
rail assembly 1.
[0025] In this embodiment, two support rollers 9 are rotatably mounted on the bottom of the connection plate 4. The two support rollers 9 are symmetrically set on both sides of the drive shaft 6. The two support rollers 9 are both in rolling contact with the top of the X-axis guide rail assembly 1. By using the support rollers 9, the support for the connection plate 4 is provided, allowing the connection plate 4 to slide smoothly and easily on the X-axis guide rail assembly 1.
